Simple Respiratory Mask
Emerging Infectious Diseases Vol. 12, No. 6
June 2006
To the Editor: The US Department of Labor recommends air-purifying respirators (e.g., N95, N99, or N100) as part of a comprehensive respiratory protection program for workers directly involved with avian influenza–infected birds or patients (1). N95 respirators have 2 advantages over simple cloth or surgical masks; they are >95% efficient at filtering 0.3-μm particles (smaller than the 5-μm size of large droplets—created during talking, coughing, and sneezing—which usually transmit influenza) and are fit tested to ensure that infectious droplets and particles do not leak around the mask (2–4). Even if N95 filtration is unnecessary for avian influenza, N95 fit offers advantages over a loose-fitting surgical mask by eliminating leakage around the mask.The World Health Organization recommends protective equipment including masks (if they not available, a cloth to cover the mouth is recommended) for persons who must handle dead or ill chickens in regions affected by H5N1 (5). Quality commercial masks are not always accessible., but anecdotal evidence has showed that handmade masks of cotton gauze were protective in military barracks and in healthcare workers during the Manchurian epidemic (6,7). A simple, locally made, washable mask may be a solution if commercial masks are not available. We describe the test results of 1 handmade, reusable, cotton mask.

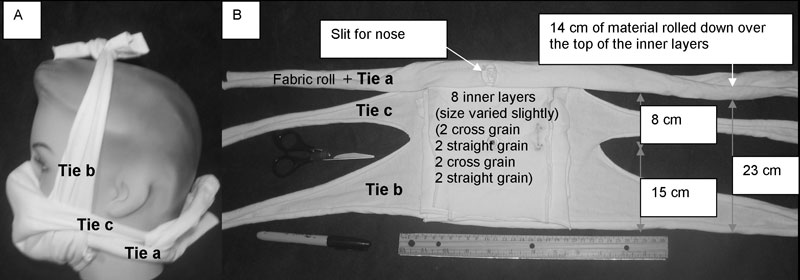

For material, we choose heavyweight T-shirts similar to the 2-ply battle dress uniform T-shirts used for protective masks against ricin and saxitoxin in mouse experiments (8). Designs and T-shirts were initially screened with a short version of a qualitative Bitrex fit test (9) (Allegro Industries, Garden Grove, CA, USA). The best were tested by using a standard quantitative fit test, the Portacount Plus Respirator Fit Tester with N95-Companion (TSI, Shoreview, MN, USA) (10). Poor results from the initial quantitative fit testing on early prototypes resulted in the addition of 4 layers of material to the simplest mask design. This mask is referred to as the prototype mask (Figure).A Hanes Heavyweight 100% preshrunk cotton T-shirt (made in Honduras) (http://www.hanesprintables.com/Globals/Faq.aspx) was boiled for 10 minutes and air-dried to maximize shrinkage and sterilize the material in a manner available in developing countries. A scissor, marker, and ruler were used to cut out 1 outer layer (≈37 × 72 cm) and 8 inner layers (<18 cm2). The mask was assembled and fitted as shown in the Figure.
A fit factor is the number generated during quantitative fit testing by simulating workplace activities (a series of exercises, each 1 minute in duration). The Portacount Plus Respirator Fit Tester with N95-Companion used for the test is an ambient aerosol instrument that measures aerosol concentration outside and inside the prototype mask. The challenge agent used is the ambient microscopic dust and other aerosols that are present in the air.
A commercially available N95 respirator requires a fit factor of 100 to be considered adequate in the workplace. The prototype mask achieved a fit factor of 67 for 1 author with a Los Alamos National Laboratory (LANL) panel face size of 4, a common size. Although insufficient for the workplace, this mask offered substantial protection from the challenge aerosol and showed good fit with minimal leakage. The other 2 authors with LANL panel face size 10, the largest size, achieved fit factors of 13 and 17 by making the prototype mask inner layers slightly larger (22 cm2).
We do not advocate use of this respirator in place of a properly fitted commercial respirator. Although subjectively we did not find the work of breathing required with the prototype mask to be different from that required with a standard N95 filtering facepiece, persons with respiratory compromise of any type should not use this mask. While testers wore the mask for an hour without difficulty, we cannot comment on its utility during strenuous work or adverse environmental conditions.
We showed that a hand-fashioned mask can provide a good fit and a measurable level of protection from a challenge aerosol. Problems remain. When made by naive users, this mask may be less effective because of variations in material, assembly, facial structure, cultural practices, and handling. No easy, definitive, and affordable test can demonstrate effectiveness before each use. Wearers may find the mask uncomfortable.
We encourage innovation to improve respiratory protection options. Future studies must be conducted to determine levels of protection achieved when naive users, following instructions, produce a similar mask from identical or similar raw materials. Research is needed to determine the minimal level of protection needed when resources are not available for N95 air-purifying respirators since the pandemic threat from H5N1 and other possible influenza strains will exist for the foreseeable future.
